Q-NOX 3-Way/NSCR Converters

Nett Technologies offers a line of 3-way (NSCR/DeNOx) catalytic converters specifically designed for large, stationary industrial engines. NSCR (non-selective catalytic reduction) converters are used for rich-burn engines (CNG/LPG) to meet emission standards for nitrogen oxides (NOx), as well as for other gases including carbon monoxide (CO) and hydrocarbons (HC).

Q-NOX - Technology

Q-NOX™ 3-way (NSCR) catalysts utilize a precious metal catalyst bonded to a monolithic, flow-through catalyst core. The cores are made of corrugated, high temperature resistant stainless steel foil packaged into a rugged stainless steel container. Nett’s Q-NOX™ series products either in stand-alone or silencer configurations are specifically designed to meet the requirements of the EPA’s RICE NESHAP regulations. Applications include 2 or 4-stroke richburn spark ignited (SI) engines used in power generation, gas compression, co-generation, pumping stations and irrigation facilities.



Q-NOX - Performance

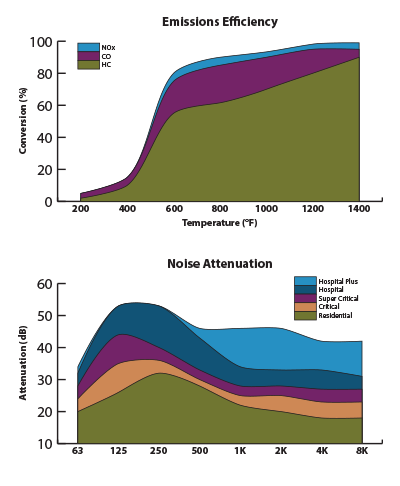

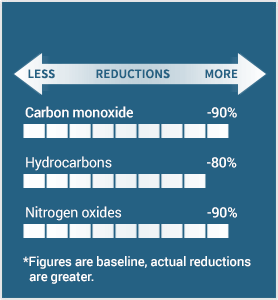

The Q-NOX™ catalytic converter reduces the concentrations of all three major Hazardous Air Pollutants (HAPs) criteria – nitrogen oxides (NOx), carbon monoxide (CO) and hydrocarbons (HC). The NOx and CO reductions are generally greater than 90%, with HC reduced by up to 80% when using an air/fuel ratio controller, such as Nett’s NEES™ Series, to maintain the stoichiometric ratio between quantities of air and fuel burned in the engine.

The Q-NOX™ Silencer series is available in industry-standard sound-attenuation grades to meet state or federal regulations. Models are available in heavy-gauge mild, aluminized and stainless steel materials.





Q-NOX - Designs and Options

Nett's Q-NOX™ series products are available in either stand-alone or silencer configurations. Stand-alone designs are universal-fit units for controlling exhaust emissions only. Silencer configurations pair the Q-NOX emissions control unit with silencers available in industry-standard sound-attenuation grades (industrial, residential, critial, hospital, etc.) to meet state or federal regulations. Models are available in heavy-gauge mild, aluminized and stainless steel materials.

Product Features


  • Serviceable design
  • Upgradable to future, more stringent regulations
  • Lightweight and durable substrate housing





  • Exhaust leak-free design
  • Floating flange connector design for easy retrofitting
  • 235° accessibility








EMISSION REDUCTIONS

Document Downloads

Q-NOX Silencers Brochure
