Tube Bending Services

tube-bending

  • Over 25 years of tube bending and metal fabrication experience.
  • A wide range of tube metal fabrication services: from tube bending, welding, rolling to beading, and powder coating.
  • Tube bending services for 1.0-6.0" tube diameters and other custom options. Please see below the full list of our production capabilities.
  • Various types of materials, such as Carbon Steel, Aluminum, Aluminized Steel, Stainless Steel, etc.
  • Customized formers (radii) can also be built as per the customer requirements.
  • Design and prototyping services. From small prototype orders to high volume production orders.

Production Capabilities

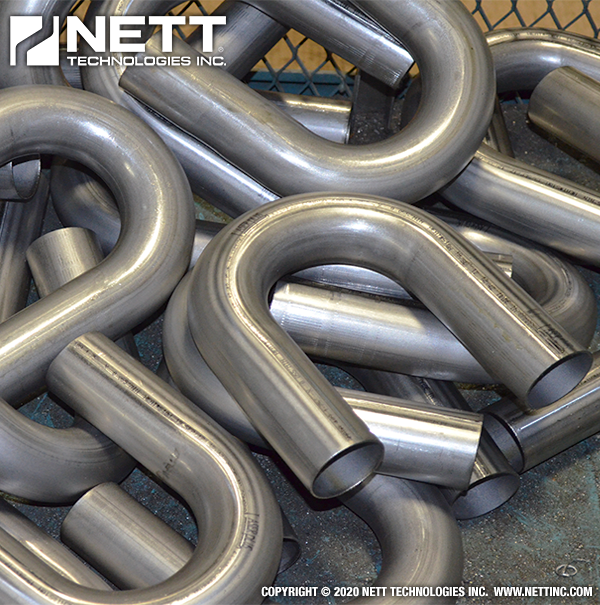

Our custom pipe bending process uses a precision mandrel bender that slowly draws a tube over a die. We use this process of metal tube bending because it provides a smooth, aesthetically pleasing appearance while maintaining the full and smooth diameter of the tube throughout the bend.

Aluminized Steel Tube 16GA

Tube diameter Centreline radius of a bend
Ø1.0" R1.5", R1.75"
​Ø1.125" ​R1.875"
Ø1.25" R1.5", R2.0", R3.0"
Ø1.375" R3.5"
Ø1.5" R2.25", R2.5"
Ø1.625" R3.25"
Ø1.75" R2.5" (16ga and 13ga) , R3.5", R5.0"
Ø1.875" R2.5", R3.0", R4.0"
Ø2.0" R2.0", R2.5", R3.0", R4.0", R4.5"
Ø2.25" R2.25", R3.0", R3.75", R4.5"
Ø2.5" R2.5", R3.0", R3.75", R4.0", R5.0"
Ø​2.75" ​R2.75", R3.25"
​Ø3.0" ​R3.0", R3.5", R4.5", R5.0", R6.0"
​Ø3.5" R3.5", R4.0", R4.5", R6.0"
Ø4.0" R4.0", R4.5", R6.0", R8.0"
Ø5.0" R5.0", R5.5", R6.0", R6.5", R8.0"
Ø6.0" R6.5", R7.0", R8.0", R10.0"































Stainless Steel Tube 16GA

Tube diameter Centreline radius of a bend
​Ø1.125" ​R1.875"
Ø1.75" R2.5"
Ø1.875" R2.5"
Ø2.0" R3.0"
Ø2.5" R3.75"













ALUM 6063-T5 Square Tube, 13GA

Tube diameter Centreline radius of a bend
​Ø1.25" ​R2.0"







We offer the following advantages for you:

  • High-quality results
  • Reduced set-up times
  • Reduced scrap
  • Extensive selection of tooling
  • Rigorous quality control
  • Short lead times

We carry most of the common radii (formers) and related tools. Customized formers can also be built as per the customer requests. After bending we can either trim the parts to size or leave them long as per the requirements.

We also offer many other secondary services, such as:

  • Welding
  • Rolling
  • Swaging / Flaring
  • Coping
  • Beading
  • Drilling
  • Flattening
  • Machining
  • Milling
  • Notching
  • Piercing
  • Punching
  • Slotting
  • Swaging
  • Threading

Contact Nett Technologies today for any of your tube bending or any other metal fabrication needs.



Production Capabilities

Our custom pipe bending process uses a precision mandrel bender that slowly draws a tube over a die. We use this process of metal tube bending because it provides a smooth, aesthetically pleasing appearance while maintaining the full and smooth diameter of the tube throughout the bend.

Aluminized Steel Tube 16GA

Tube diameter Centreline radius of a bend
Ø1.0" R1.5", R1.75"
​Ø1.125" ​R1.875"
Ø1.25" R1.5", R2.0", R3.0"
Ø1.375" R3.5"
Ø1.5" R2.25", R2.5"
Ø1.625" R3.25"
Ø1.75" R2.5" (16ga and 13ga) , R3.5", R5.0"
Ø1.875" R2.5", R3.0", R4.0"
Ø2.0" R2.0", R2.5", R3.0", R4.0", R4.5"
Ø2.25" R2.25", R3.0", R3.75", R4.5"
Ø2.5" R2.5", R3.0", R3.75", R4.0", R5.0"
Ø​2.75" ​R2.75", R3.25"
​Ø3.0" ​R3.0", R3.5", R4.5", R5.0", R6.0"
​Ø3.5" R3.5", R4.0", R4.5", R6.0"
Ø4.0" R4.0", R4.5", R6.0", R8.0"
Ø5.0" R5.0", R5.5", R6.0", R6.5", R8.0"
Ø6.0" R6.5", R7.0", R8.0", R10.0"































Stainless Steel Tube 16GA

Tube diameter Centreline radius of a bend
​Ø1.125" ​R1.875"
Ø1.75" R2.5"
Ø1.875" R2.5"
Ø2.0" R3.0"
Ø2.5" R3.75"













ALUM 6063-T5 Square Tube, 13GA

Tube diameter Centreline radius of a bend
​Ø1.25" ​R2.0"







We offer the following advantages for you:

  • High-quality results
  • Reduced set-up times
  • Reduced scrap
  • Extensive selection of tooling
  • Rigorous quality control
  • Short lead times

We carry most of the common radii (formers) and related tools. Customized formers can also be built as per the customer requests. After bending we can either trim the parts to size or leave them long as per the requirements.

We also offer many other secondary services, such as:

  • Welding
  • Rolling
  • Swaging / Flaring
  • Coping
  • Beading
  • Drilling
  • Flattening
  • Machining
  • Milling
  • Notching
  • Piercing
  • Punching
  • Slotting
  • Swaging
  • Threading

Contact Nett Technologies today for any of your tube bending or any other metal fabrication needs.

Request A Quote
